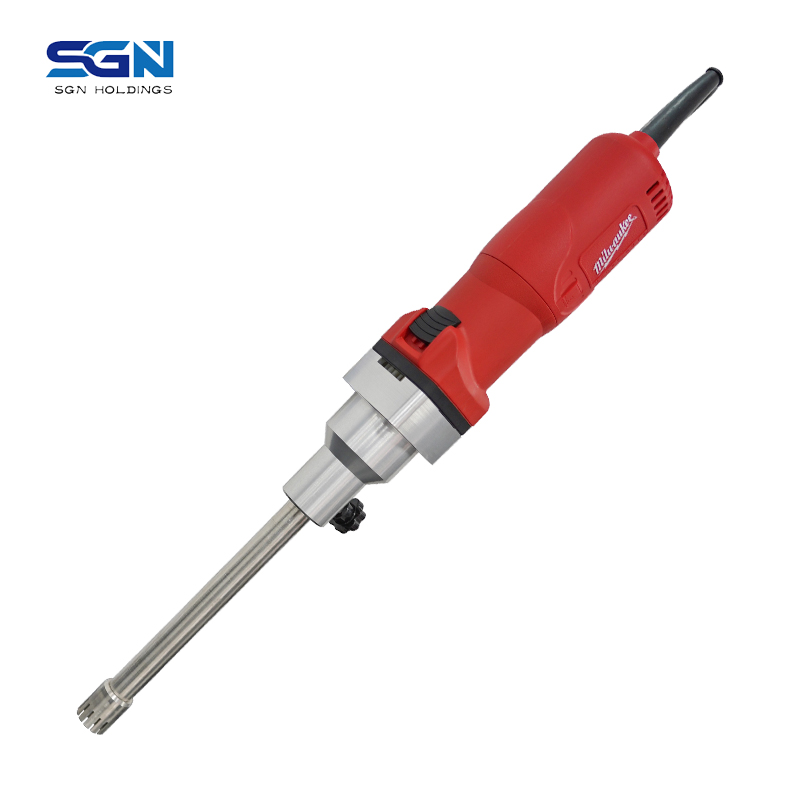

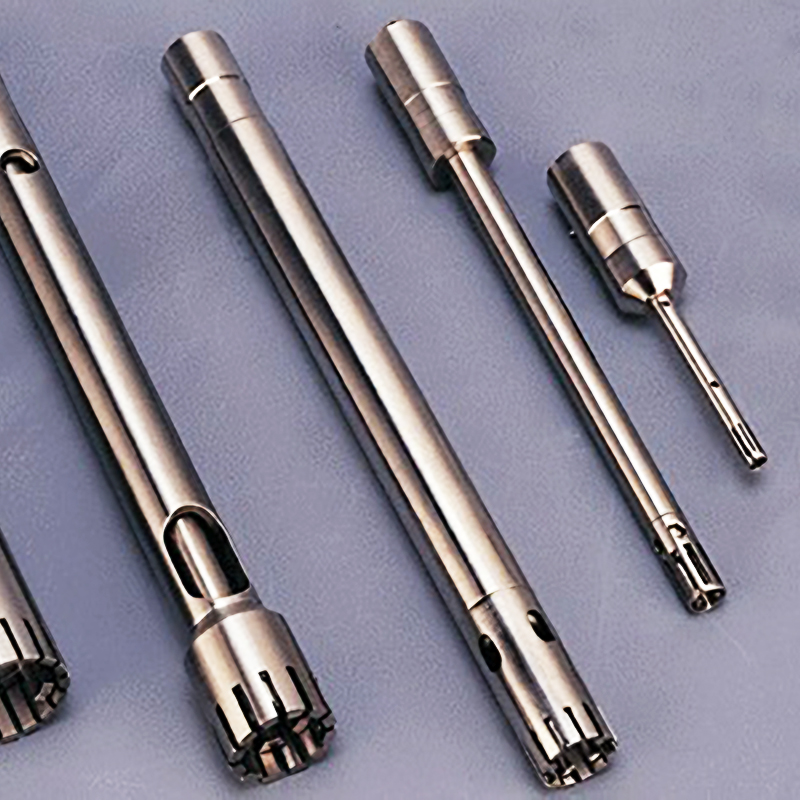

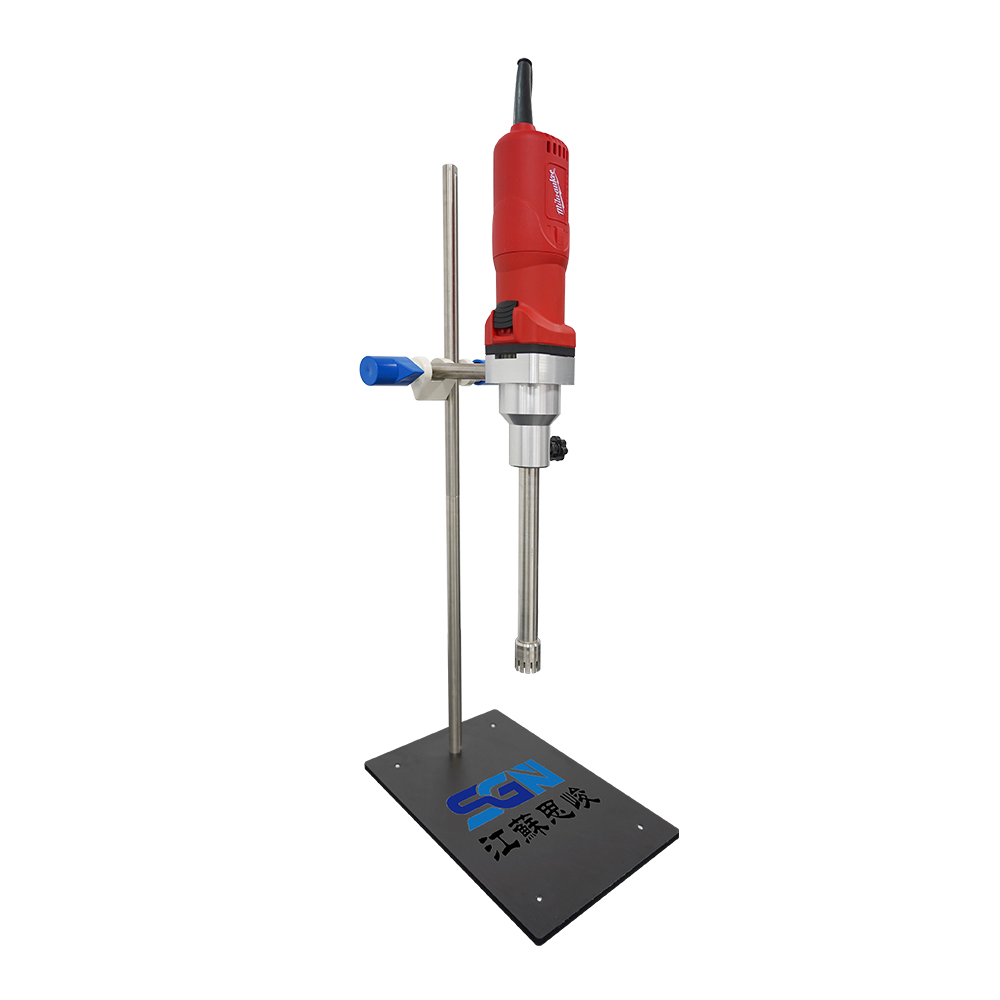

The S25 dispersing emulsifier is a compact and convenient model that supports handheld operations. It is suitable for laboratory experiments and small-batched productions; there are over 20 types of optional working heads available, which can easily meet a great diversity of requirements in production and experimental situations.
It is equipped with a German-imported motor, which works more stably with lower noise, and has a maximum revolution speed of 28000rpm; it is also able to operate continuously for a long period of time.
Model | Capacity (ml) | Linear Speed (m/s) | Material | Temperature | Pressure Resistance | Submersible Length (mm) | Applicable Viscosity |
S25-5G | 0.2-8 | 3 | SUS304/316L/PTFE | <120℃ | NO | 35 | <80cP |
S25-6G | 0.2-10 | 5 | SUS304/316L/PTFE | <120℃ | NO | 45 | <100cP |
S25-8G | 10-60 | 8 | SUS304/316L/PTFE | <120℃ | NO | 100 | <100cP |
S25-10G | 30-150 | 10 | SUS304/316L/PTFE | <120℃ | NO | 120 | <200cP |
S25-18G | 50-1500 | 18 | SUS304/316L/PTFE | <120℃ | NO | 180 | <2000cP |
S25-18F | 50-1500 | 18 | SUS304/316L/PTFE | <120℃ | NO | 180 | <1200cP |
S25-20G | 50-3000 | 20 | SUS304/316L/PTFE | <120℃ | NO | 190 | <2000cP |
S25-20F | 50-3000 | 20 | SUS304/316L/PTFE | <120℃ | NO | 190 | <1200cP |
S25-20SG | 50-3000 | 20 | SUS304/316L/SIC/PTFE | <180℃ | YES | 190 | <2000cP |
S25-20SF | 50-3000 | 20 | SUS304/316L/SIC/PTFE | <180℃ | YES | 190 | <1200cP |
S25-25G | 100-5000 | 27 | SUS304/316L/PTFE | <120℃ | NO | 200 | <3500cP |
S25-25F | 100-5000 | 27 | SUS304/316L/PTFE | <120℃ | NO | 200 | <2000cP |
S25-25SG | 100-5000 | 27 | SUS304/316L/SIC/PTFE | <180℃ | YES | 200 | <3500cP |
S25-25SF | 100-5000 | 27 | SUS304/316L/SIC/PTFE | <180℃ | YES | 200 | <2000cP |
