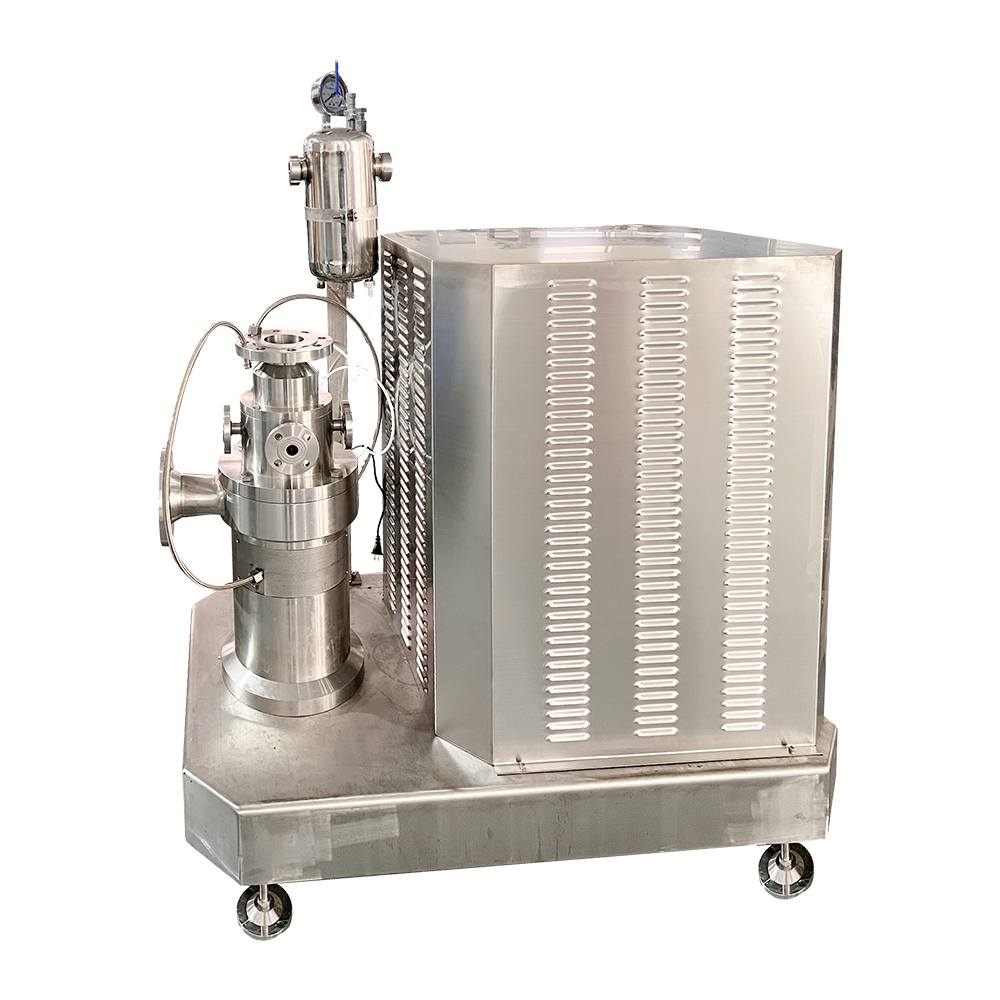

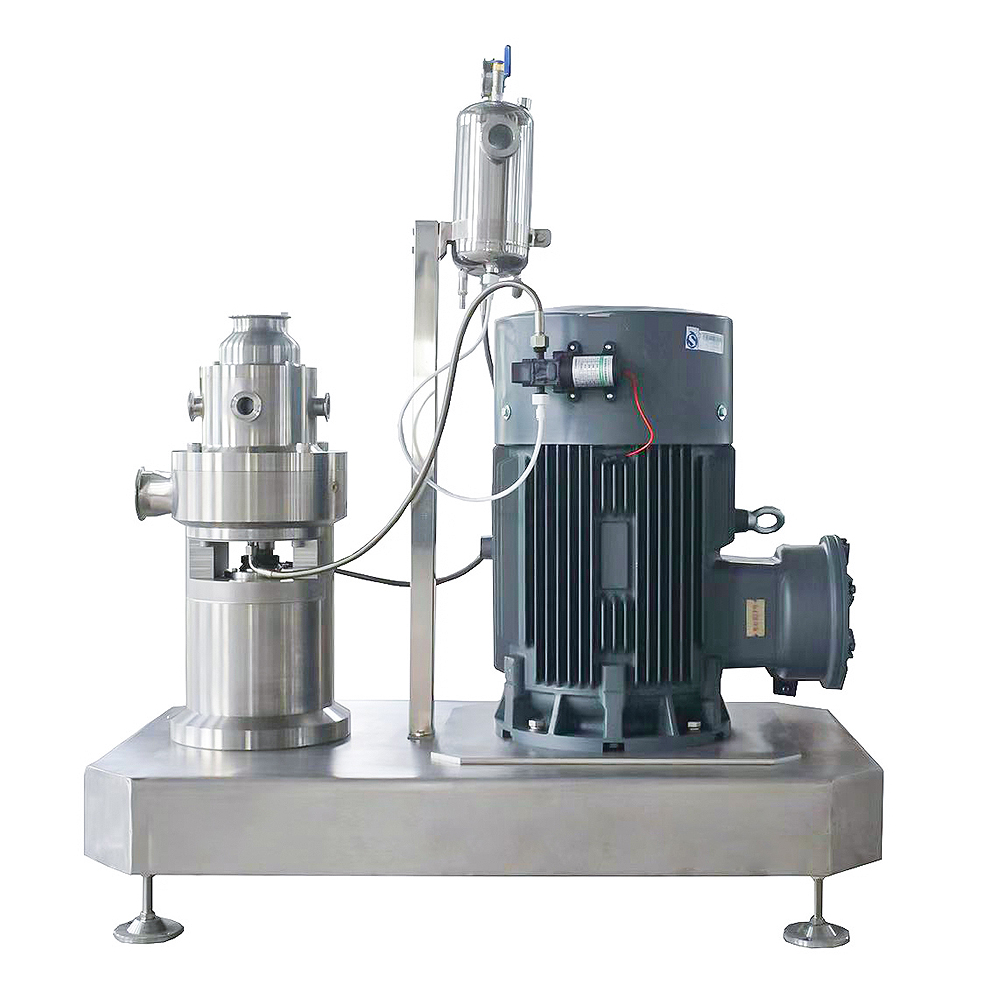

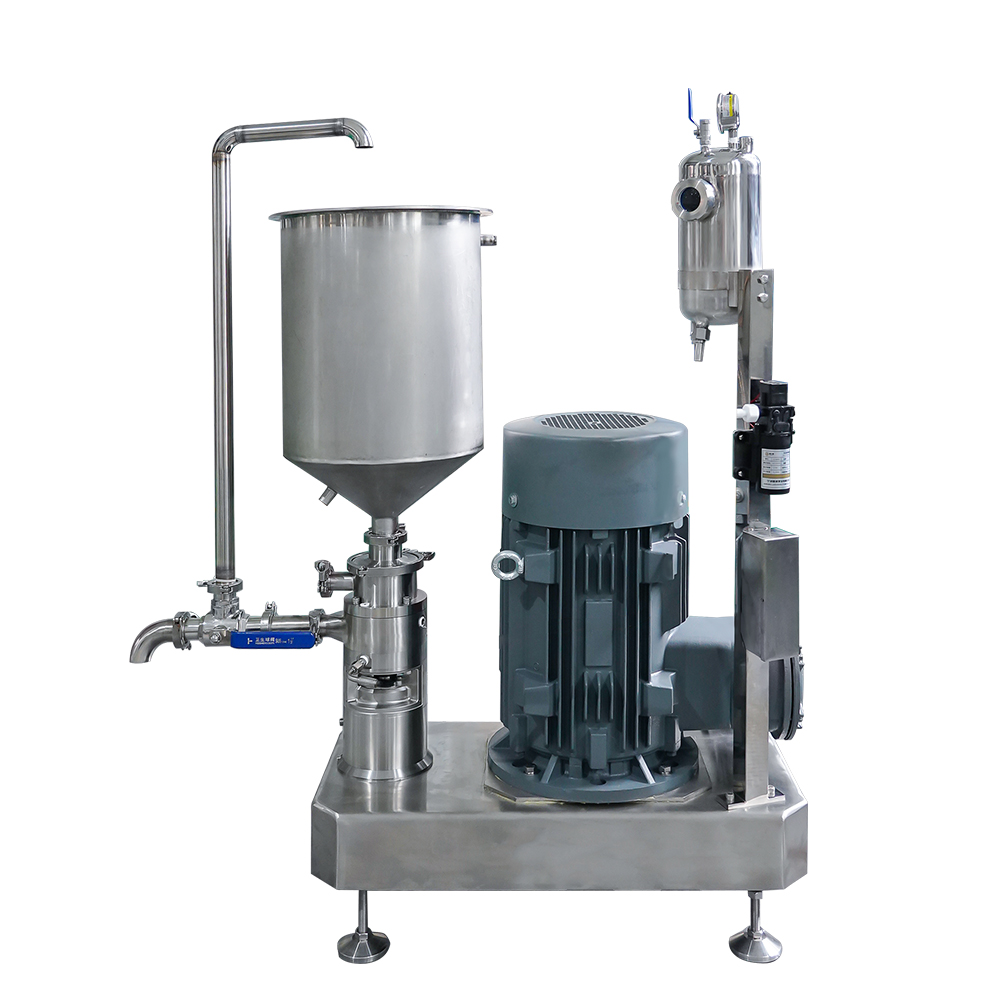

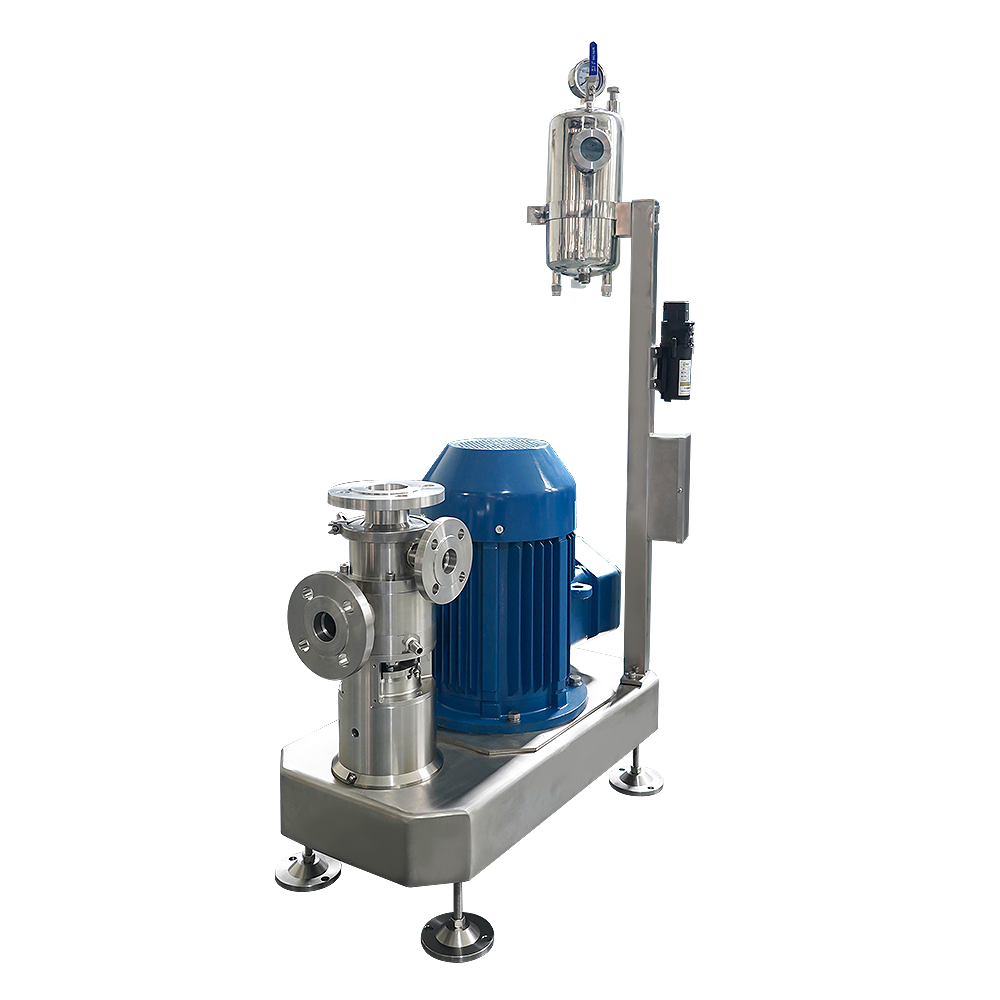

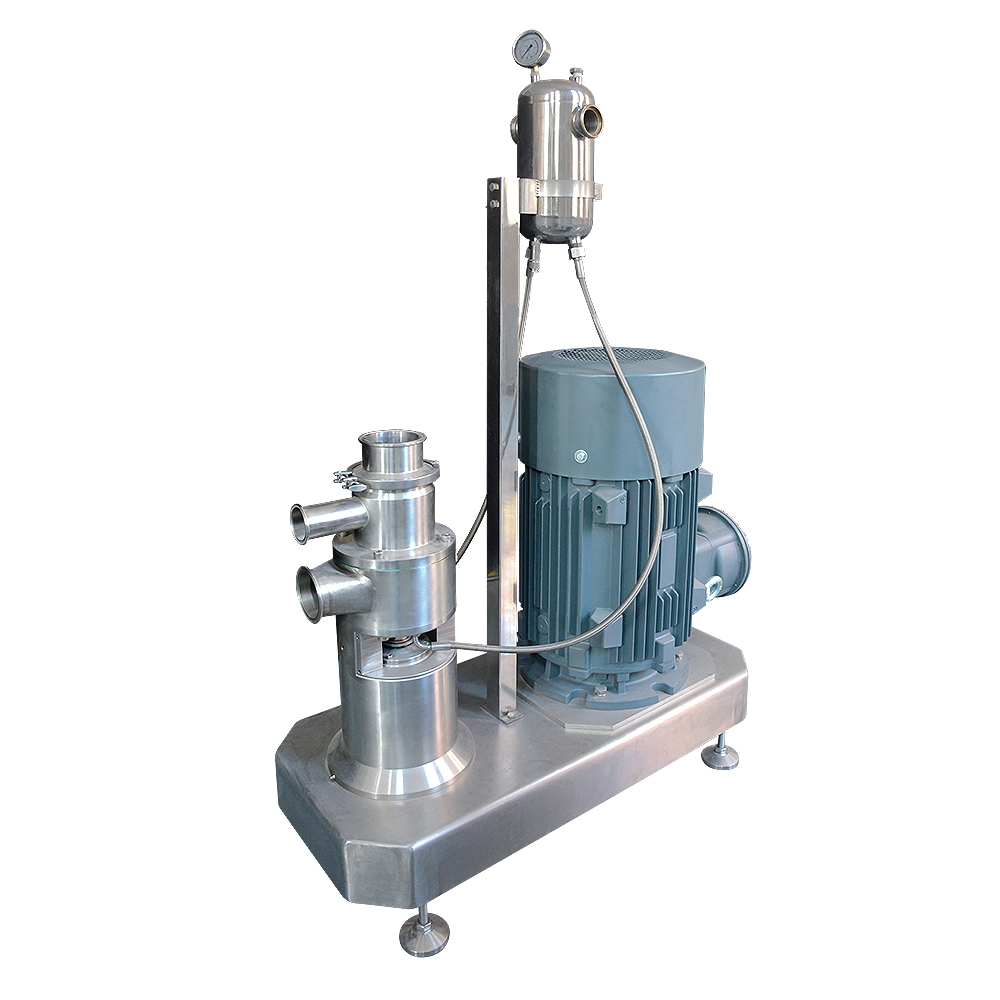

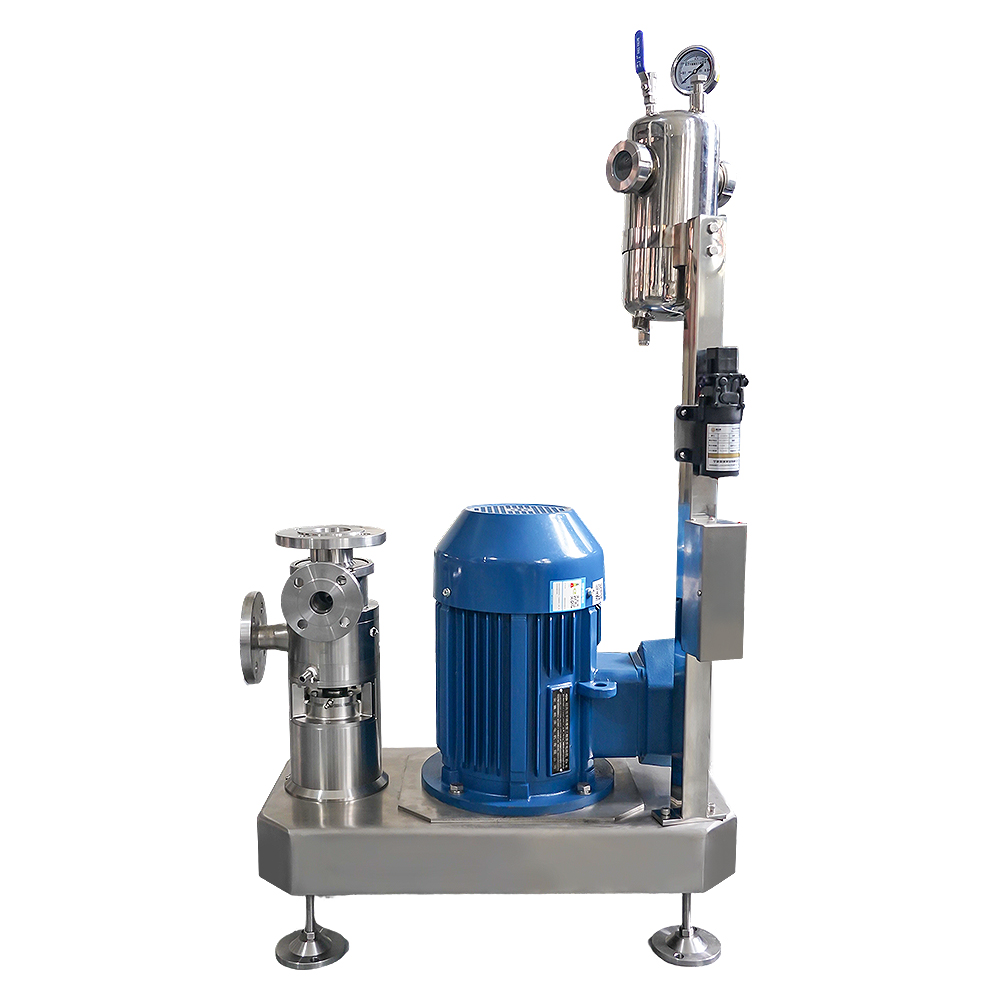

GLC2000 Series Inline Powder-Liquid Mixer

Availability:
Quantity:
facebook sharing button
twitter sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button

The GLC2000 series mixer is recommended when the mixing of a large load of materials is required, since it enables continuous mixing of liquid and solid without needing to pause. The raw material is premixed at a certain proportion, which is then directly dispersed, so the product mixture can be obtained immediately. By increasing the flow rate of mixing solid, it speeds up the processing and lessens the space that is required, thus eliminating the need for additional expensive and bulky tanks. It offers greater flexibility while ensuring stable quality.

GLC2000 adopts a unique structure and working principle: it is equipped with a specially designed rotor, along with a liquid inlet and a powder inlet, allowing the powder to be dispersed instantly as it contacts with the liquid.



Model

Standard Flow Rate (L/h)

Maximum Powder
Feeding (kg/h)

Motor Speed
(r/min)

Standard Linear Speed (m/s)

Motor Power
(kW)

I/O Pipe Size

GLC2000/4

700

50

14000

41

4

DN50/DN15/DN15

GLC2000/5

3000

500

10500

41

11

DN50/DN25/DN32

GLC2000/10

8000

2800

7300

41

22

DN80/DN50/DN65

GLC2000/20

20000

6200

4900

41

37

DN100/DN80/DN80

GLC2000/30

40000

8200

2850

41

75

DN150/DN80/DN100

GLC2000/40

120000

11200

1100

41

110

DN200/DN100/DN150
